Lab 1: Debugging C with VS Code

In this lab, you’ll practice using VS Code’s C debugger.

The images in this lab are from Windows. The Mac and Linux versions of VS Code look similar to this, but not identical, so you should adapt accordingly.

What’s a debugger?

A debugger is a tool designed to help you debug your programs. Debuggers tend to have a lot of sophisticated features, but the core of what you need to know is this: a debugger allows you to run your program one line at a time, enabling you to examine your variables along the way. If you can watch your variables evolve one slow line of code at a time, you can usually track down your errors.

Part A: Setting breakpoints and inspecting variables

To get started, launch VS Code and connect to mantis. Go back and look at Lab 0 again if this process isn’t yet ingrained in your memory.

Now, let’s get started debugging:

  • Install the C/C++ Extension Pack: Select the View->Extensions menu, search for the C/C++ Extension Pack from Microsoft, and install it.

  • Get a program to debug: Copy the bitwise.c sample to your working directory on mantis. You can do this using File->New Text File and then copy-pasting the contents. (Alternatively, you can use your mantis terminal and a variant of the wget command described in the Starting C assignment to grab bitwise.c—it’s good to be comfortable using either approach.)

  • Read the code: Take a look through bitwise.c to see what it’s doing. How many numerical operations can you spot?

  • Set a breakpoint: Once you have a copy of bitwise.c open in VS Code, scroll to the function experiment1. At line 48, where it says int b = a | bit;, hover your mouse to the left of the line number. You will see the ghost of a red dot. Click it to make that red dot solid.

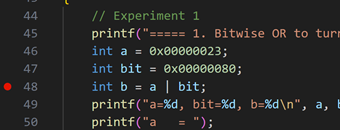

Before setting a breakpoint After setting a breakpoint
When you run the program in debugging mode, the program will stop just before executing the line of code at your breakpoint.

  • Start debugging: You can do this either from the Run menu or from the play-button-with-a-bug in the upper-right corner of VS Code.

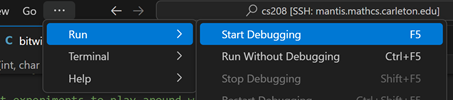

Start debugging via menu option Start debugging via button
Choose the first option: C/C++: gcc build and debug active file. After a moment to get things running, your program will stop when it first gets to your breakpoint.

  • Stop and think: In the code, the line at your breakpoint is highlighted. This line has not yet executed.

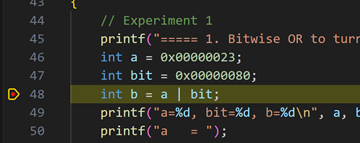

Paused at a breakpoint
Think for a moment before continuing: what value do you expect to be stored in the variable b after line 48 executes?

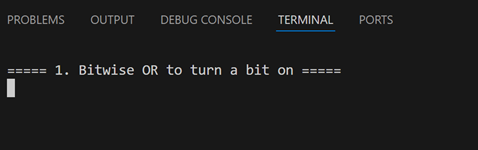

  • Look around for a minute: There is a terminal/console display at the bottom of the window, showing that the program has already produced some output, but has paused before finishing:

VS Code terminal while debugging
There’s also a debugging toolbar at the top with different debugging buttons, including a continue button to let your program continue from where it left off and a stop button for stopping the program. Hover over the buttons to see their names (and keyboard shortcuts).
VS Code debugging toolbar
Most important of all, in the upper-left corner of the VS Code window, there is the Variables panel, showing you the current values of the variables a and bit, as well as the not-yet-computed b.
VS Code Variables panel
Finally, in the bottom left, there’s the Call Stack. What do you think this is?

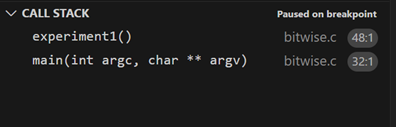

VS Code Call Stack

  • Step through your code: When the program stopped at your breakpoint, you were in the middle of experiment1() (how can you tell?). You can now step through your program one line at a time.

    • Click the Step Over button in the debugging toolbar.

    • Look at the Variables panel. Did the variable values change the way you expected them?

    • Press the Step Over button a couple more times until the next line to be executed (e.g., the one currently highlighted) is a call to print_binary. Go slowly and pay attention to what changes after each click of the Step Over button. Now, instead of clicking Step Over, click the Step Into button.

    • Look at the Call Stack panel. How did it change by moving into the print_binary function? How did the Variables panel change?

    • Keep doing this as long as you want.

It is extremely valuable to be able to step through your code slowly to see whether it’s doing what you expect it to do. Get in the habit of doing this when you have a bug, but also even when you think your code is working. You can find a lot of subtle bugs this way.

  • Done debugging: You can stop by clicking the Stop button. You can get the File Explorer pane back via the View->Explorer menu or clicking the appropriate button on the far left.

Part B: Debugging with multiple files and command-line arguments

You’ll now walk through debugging something more complicated, which happens to correspond to starting your next assignment.

Getting started

To start, let’s get the code. You can check out the assignment page or use the instructions I’ve copied here assuming you are continuing the lab and thus already connected to mantis.

  • In the VS Code terminal, make sure you’re in your cs208 directory (a.k.a. folder). If not, use cd to get to the right place, probably like this:

    cd ~/cs208

  • Use the wget command to download the starter code as a single .tar file:

    wget https://cs.carleton.edu/faculty/tamert/courses/cs208-f24/resources/assignments/a3.tar

  • Extract the a3 folder:

    tar xvf a3.tar

  • Save any open files, as we’re about to change up your VS Code workspace.

  • Within VS Code, switch to that folder as your workspace directory by choosing File->Open Folder and selecting cs208 and then a3 before clicking OK. You will probably have to re-enter your password.

  • Re-open the VS Code Terminal (Terminal->New Terminal). For me, this has my prompt ending in ~/cs208/a3$. If yours is similar, you’re in the right folder. Let’s try compiling the starter code:

make

Here’s what my Terminal looks like when the compilation is successful:

tamert@mantis:~/cs208/a3$ make
gcc -Wall -Werror -O0 -g -o bits bits.c main.c

  • Try running the code in the Terminal by typing ./bits to_lower abcDEF. This will use the provided code in main.c to call the to_lower function with input abcDEF:

    tamert@mantis:~/cs208/a3$ ./bits to_lower abcDEF
abcDEF

For now, all that main does is print the result of calling to_lower on the provided input. We aren’t changing the string, so it prints the original string.

  • After class you should read the assignment directions carefully, and look through both readme.txt and bits.h. For now, though, open bits.c and add a print statement to the beginning of to_lower, printing out s:

    void to_lower(char *s)
{
    printf("Input s: '%s'\n", s); // <-- new, not in starter code

    // TODO
    return;
}

  • Recompile and re-run the code. You should see your print statement reflected:

    tamert@mantis:~/cs208/a3$ make
gcc -Wall -Werror -O0 -g -o bits bits.c main.c
tamert@mantis:~/cs208/a3$ ./bits to_lower abcDEF
Input s: 'abcDEF'
abcDEF

Debugging Assignment #3

Now that you are able to compile and run your code, let’s try debugging it.

  • Like before, start by setting a breakpoint, here on your printf line in to_lower.

  • From the Run menu, select Add Configuration.

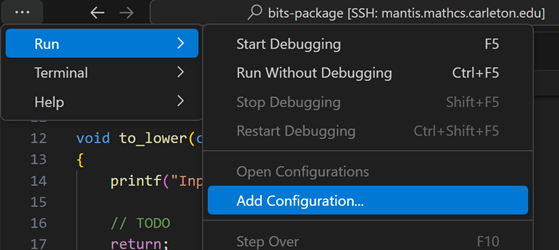

Opening the debugging config file
This will create a new .vscode folder in your a3 folder (look at the Explorer panel on the left), with a launch.json file inside of it.

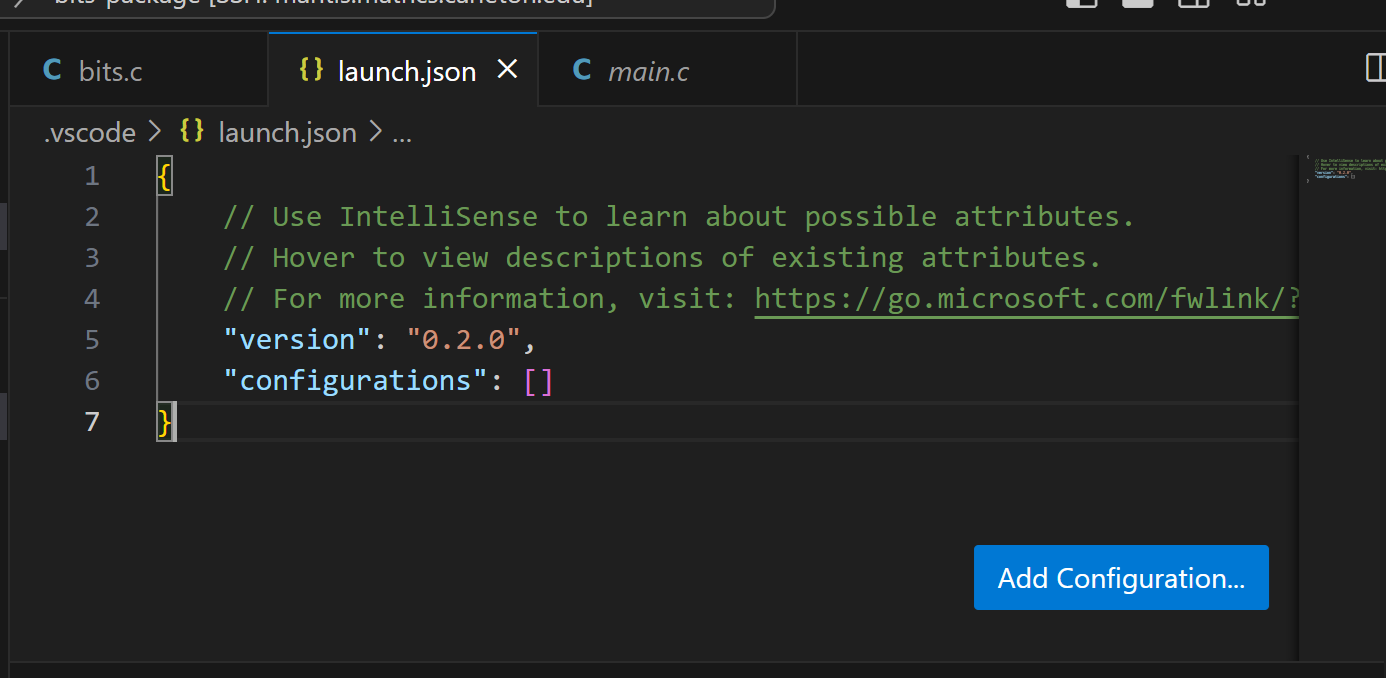

Explorer panel with new launch.json file

  • In the text editor panel, you should have launch.json open. It’s pretty empty now, but there is an Add Configuration... button you can click on to fill it in.

Explorer panel with new launch.json file
Click that button and select {} C/C++: (gdb) Launch.

  • There is now a bunch of lines after "configurations": [. You need to change a few of the values:
    • Change the string after "program": to be "${workspaceFolder}/bits". This specifies the program to run, just like when you run ./bits in the Terminal; ${workspaceFolder} is the folder you have open in VS Code (which should be ~/cs208/a3).
    • Change the array after "args" to have the arguments you’d pass at the command line: ["to_lower", "abcDEF"].
    • Change the "name" to something you like, such as "Debug bits.c". This is optional, but I like to recognize what I’m running.

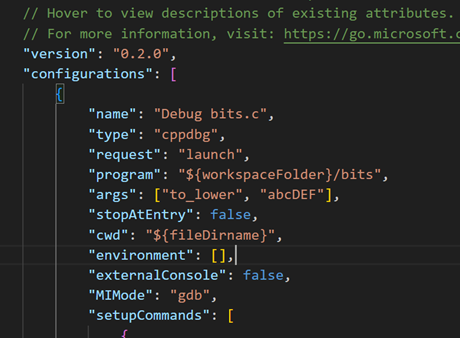

Here is a snippet of my file after these changes: A completed debug config file

  • Switch to editing bits.c. Make sure you still have your breakpoint in to_lower.

  • Start debugging. This time, select the debug configuration you just created (mine is called Debug bits.c).

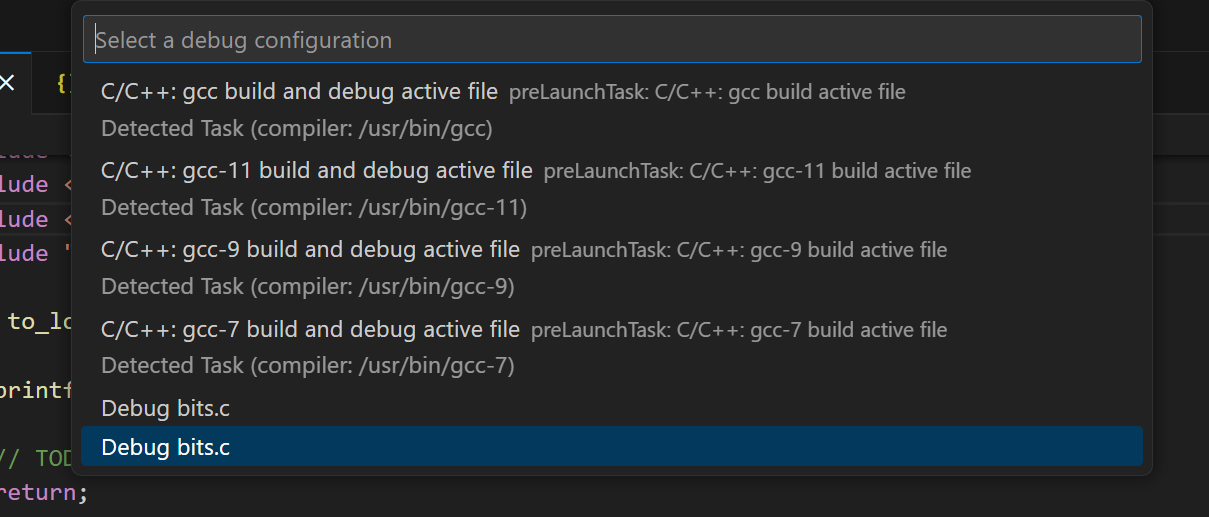

Choosing the debugging launch configuration
(No, I don’t know why it shows up on the list twice. I’m not sure what the difference is.)

  • When the code runs and pauses at your breakpoint in to_lower, take a look at the Variables panel. What does the string s look like? It may help to expand the panel horizontally to see its full width.

A few more things to try

Here are a few more things to try out and ponder. It will be really helpful to you later to get comfortable using a debugger now, so I encourage you try them now, and revisit them if you’re having any issues later! You can also ask about these in office hours if there is anything I can help clear up.

  • What is the difference between the Step Over and Step Into buttons? Test this. Also, what happens if you try to Step Into a C library function like printf?

  • What if your program requires more command-line arguments? What syntax do you use in the launch.json (config) file?

  • Declare an array in main or some other function and break somewhere in that function. What does the array look like in the Variables panel?

  • Download the sample debug_this.c from the Samples page. This program has a bug. See if you can step through the program in the debugger (it’s just a single file, so you don’t need a launch.json and can just pick the config C/C++: gcc build and debug active file), even if you find the bug from inspection alone.

  • Also in debug_this.c:

    • Comment out everything in main except the return statement.

    • Add a call to recursive_triangular_number(10) and a print statement to print out its result.

    • Put a breakpoint somewhere in recursive_triangular_number.

    • Run the debugger.

    • When you hit the breakpoint, take a look at the Variables panel; is it showing what you expect? Also, look at the Call Stack panel; is it showing what you expect?

    • Click the Continue button. You should land at your breakpoint again. How have the Variables and Call Stack panels changed? Repeat this a couple of times.

    • Now, you should have quite a few function calls showing in the Call Stack. Click on each of them, and when you do, look at the Variables panel. What changes as you click on each function call? Explore, experiment, etc.

    • How would you explain the Call Stack to a CS 111 student?

  • Grab the sample character_count.c and debug that; note that you’ll need to provide an input file, so this will require a new configuration in a launch.json file, with a filename as an argument in the "args" array. Put a breakpoint in character_counter.c’s main just before get_character_count gets called. When your program hits that breakpoint, take a look at the input_file_name variable in the Variables panel. Make sure your Variables panel is wide enough that you can see both the numerical/address value of input_file_name as well as the string that it points to.

That’s it!

There is a lot more to learn about using a debugger, but this should give you a good start. Keep practicing, and as always, ask questions you may have!
